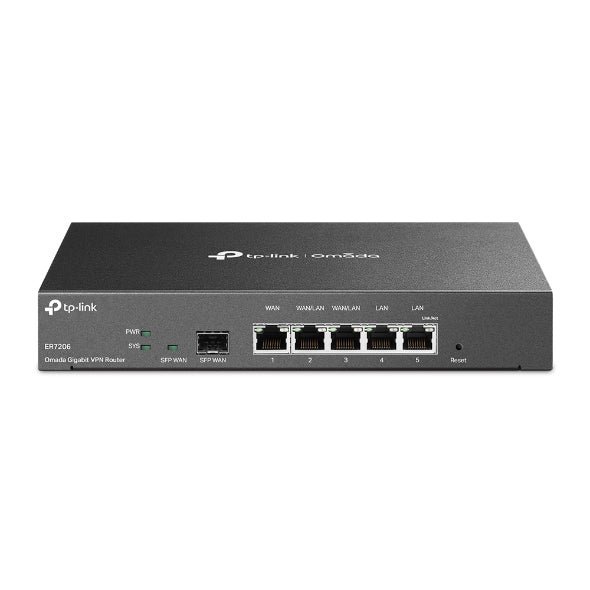

    TP-Link Omada Gigabit VPN Router ER7206

    Ref: 20506250105
    EAN: 0840030701474
    TechBay
    929.00 QAR
    اضف للعربة »
    • تفاصيل

    Access ControlSource/Destination IP-Based Access Control
    FilteringWEB Group Filtering§
    URL Filtering
    Web Security§
    ARP Inspection• Sending GARP Packets§
    • ARP Scanning§
    • IP-MAC Binding§
    Attack Defense• TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN

    HARDWARE FEATURES

    Standards and Protocols• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
    • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
    Interface• 1 Fixed Gigabit SFP WAN Port
    • 1 Fixed Gigabit RJ45 WAN Port
    • 2 Fixed Gigabit RJ45 LAN Ports
    • 2 Changeable Gigabit RJ45 WAN/LAN Ports
    Network Media• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
    EIA/TIA-568 100Ω STP (Max 100m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
    EIA/TIA-568 100Ω STP (Max 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
    Fan QuantityFanless
    ButtonReset Button
    Power Supply100–240 V~50/60 Hz
    PoE Budget-
    FlashSPI 4MB + NAND 128MB
    DRAM512MB
    LEDPWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
    Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
    Protection4 kV surge protection
    EnclosureSteel
    MountingDesktop
    Max.Power Consumption8.95W

    PERFORMANCE

    IPS ThroughputTCP: 200 Mbps;
    UDP: 150 Mbps
    DPI ThroughputTCP: 931 Mbps;
    UDP: 902 Mbps
    WireGuard VPN177.2 Mbps
    Concurrent Session150,000
    New Sessions /Second5,500
    NAT (Static IP)940.3 Mbps / 940.2 Mbps
    NAT(DHCP)940.3 Mbps / 940.4 Mbps
    NAT(PPPoE)939.7 Mbps / 937.9 Mbps
    NAT (L2TP)918.0 Mbps / 917.9 Mbps
    NAT (PPTP)918.9 Mbps / 914.7 Mbps
    64 Byte Packet Forwarding Rate-
    IPsec VPN Throughput (AES256)291.6 Mbps
    IPsec VPN Throughput291.6 Mbps
    OpenVPN34.2 Mbps
    L2TP VPN ThroughputUnencrypted: 1360.3 Mbps
    Encrypted: 202.3 Mbps
    PPTP VPN ThroughputUnencrypted: 1379.3 Mbps
    Encrypted: 115.6 Mbps
    SSL VPN Throughput-
    66 Byte Packet Forwarding Rate486,918 pps / 488,372 pps
    1,518 Byte Packet forwarding rate81,274 pps / 81,274 pps

    BASIC FUNCTIONS

    WAN Connection Type• Static/Dynamic IP
    • PPPoE
    • PPTP
    • L2TP
    MAC CloneModify WAN/LAN MAC Address†
    DHCP• DHCP Server
    • DHCP Address Reservation
    • Multi-IP Interfaces*
    • Multi-Net DHCP*
    IPv6Developing‡
    VLAN802.1Q VLAN
    IPTVIGMP v2/v3 Proxy

    Advanced Features

    Access ControlIP/Port/Protocol/Domain Name Filtering
    Advanced Routing• Static Routing
    • Policy Routing
    Bandwidth Control• IP/Port-based Bandwidth Control
    • Guarantee & Limited Bandwidth
    Load Balance• Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup (Timing§, Failover)
    • Online Detection
    NAT• One-to-One NAT§
    • Multi-Net NAT
    • Virtual Server
    • Port Triggering§
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
    Security• SPI Firewall
    • VPN Passthrough
    • FTP/H.323/PPTP/SIP/IPsec ALG
    • DoS Defence, Ping of Death
    • Local Management
    Session LimitIP-based Session Limit

    VPN

    SSL VPN-
    IPsec VPN• 100 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    • IKEv1/v2
    • MD5, SHA1 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
    PPTP VPN• PPTP VPN Server
    • 10 PPTP VPN Clients**
    • 50 Tunnels
    • PPTP with MPPE Encryption
    L2TP VPN• L2TP VPN Server
    • 10 L2TP VPN Clients**
    • 50 Tunnels
    • L2TP over IPSec
    OpenVPN• OpenVPN Server*
    • 10 OpenVPN Clients*△
    • 50 OpenVPN Tunnels*
    WireGuard VPN• 20 Tunnels

    AUTHENTICATION

    Web Authentication• No Authentication
    • Simple Password*
    • Hotspot（Local User / Voucher* / SMS* / Radius*）
    • External Radius Server
    • External PortalServerr*
    • Facebook*

    Management Features

    Omada AppYes.Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
    Maintenance• Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3*
    • Diagnostics (Ping & Traceroute)§
    • NTP Synchronize§
    • Syslog Support
    Zero-Touch ProvisioningYes.Requiring the use othe f the Omada Cloud-Based Controller.
    Management Features• Automatic Device Discovery
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • Captive Portal Configuration

    OTHERS

    CertificationCE, FCC, RoHS
    Package Content• ER7206
    • Power Cord
    • Quick Installation Guide
    System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
    Environment• Operating Temperature: 0–40 ℃ (32–104 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
