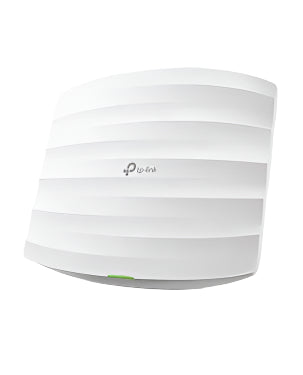

    TP-Link EAP225 V4 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

    Ref: 20506250280
    EAN: 0020506250280
    TechBay
    529.00 QAR
    اضف للعربة »
    • تفاصيل

    InterfaceGigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
    Physical Security LockYes
    ButtonReset
    Power Supply• 802.3af/at PoE
    • 24V Passive PoE (+4,5pins; -7,8pins.PoE Adapter Included)
    Max.Power ConsumptionEU: 9.7W
    US: 12.1W
    Dimensions ( W x D x H )8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
    Antenna3 Internal Omni
    • 2.4 GHz: 4 dBi
    • 5 GHz: 5 dBi
    MountingCeiling /Wall Mounting (Kits included)

    WIRELESS FEATURES

    Coverage115㎡(1250 ft²)§
    Concurrent Clients220+**
    Wireless StandardsIEEE 802.11ac/n/g/b/a
    Frequency2.4 GHz and 5 GHz
    Signal Rate• 5 GHz:Up to 867 Mbps
    • 2.4 GHz:Up to 450 Mbps
    Wireless Functions• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • Seamless Roaming*
    • Omada Mesh*
    • Band Steering
    • Load Balance
    • MU-MIMO
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
    Wireless Security• Captive Portal Authentication*
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    Transmission Power• CE:
    ≤20 dBm(2.4 GHz, EIRP)
    ≤23 dBm(5 GHz, EIRP)
    • FCC:
    ≤24 dBm(2.4 GHz)
    ≤22 dBm(5 GHz)

    Management Features

    Omada AppYes
    Centralized Management• Omada Hardware Controller OC300
    • Omada Hardware Controller OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
    Cloud AccessYes, through
    • OC300
    • OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
    Email AlertsYes
    LED ON/OFF ControlYes
    Management MAC Access ControlYes
    SNMPv1,v2c
    System Logging Local/Remote SyslogLocal/Remote Syslog
    SSHYes
    Web-based ManagementHTTP/HTTPS
    L3 ManagementYes
    Multi-site ManagementYes
    Management VLANYes
    Zero-Touch ProvisioningYes.Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

    OTHERS

    CertificationCE, FCC, RoHS
    Package Content• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
    • Passive PoE Adapter
    • Power Cord
    • Mounting Kits
    • Installation Guide
    System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
    Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
