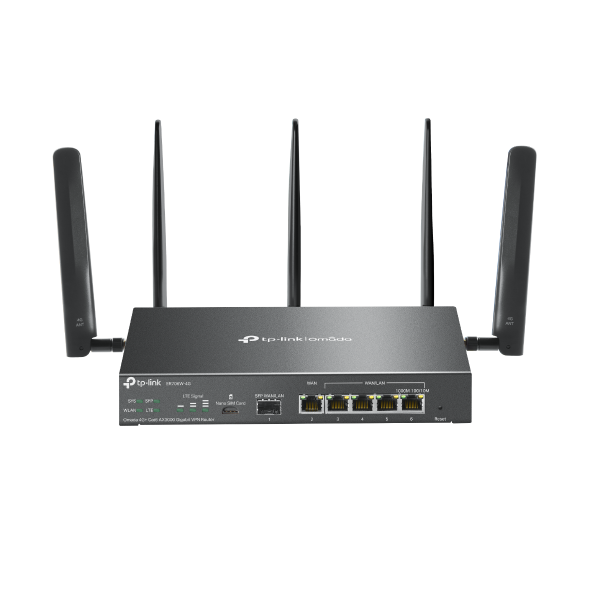

    TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Router

    Ref: 20506250106
    EAN: 4897098683088
    TechBay
    1,349.00 QAR
    اضف للعربة »
    • تفاصيل

    4G
    Network TypeLTE Band of EU:
    • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
    • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
    • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
    (2100/1800/850/900 MHz)

    Carrier Aggregation:
    B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
    B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
    B5+B5/B7/B38/B40/B41
    B7+B7/B8/B20/B28/B32
    B8+B32/B38/B40/B41
    B20+B32/B38/B40
    B28+B32/B38/B40/B41
    B38+B38
    B40+B40
    B41+B41
    SIM Type1× Nano SIM Card
    Frequency• Downlink: 300 Mbps;
    • Uplink: 50 Mbps
    SECURITY
    DPIApplication control via DPI / Updated app library
    IDS/IPSSignature-based IPS/IDS threat detection
    Access ControlSource/Destination IP-Based Access Control
    Filtering• Web Group Filtering†
    • URL Filtering
    • Web Security†
    ARP Inspection• Sending GARP Packets
    • ARP Scanning†
    • IP-MAC Binding
    Attack Defense• TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN
    HARDWARE FEATURES
    Interface• 1 Gigabit SFP WAN/LAN Port
    • 1 Gigabit WAN Port
    • 4 Gigabit LAN/WAN Ports
    Network Media• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
    ButtonReset Button
    Power Supply12VDC / 2A Power Adapter
    Wi-Fi Frequency & Signal Rate• 2.4 GHz: 574 Mbps
    • 5 GHz: 2402 Mbps (HE160)
    Flash128 MB NAND
    DRAM512 MB DDR4
    LEDSYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
    Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
    included)
    Antenna• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
    • LTE: Two 4.0dBi omnidirectional detachable antennas
    MountingDesktop/Wall-Mounting
    Max Power ConsumptionEU: 17.3W
    PERFORMANCE
    IPS Throughput• TCP: 229 Mbps
    • UDP: 188 Mbps
    DPI Throughput• TCP: 933 Mbps
    • UDP: 927 Mbps
    GRE• Unencrypted: 545.3Mbps
    • Encrypted: 282.6Mbps
    WireGuard VPN387.7Mbps
    Concurrent Session150,000
    New Sessions /Second5,100
    NAT (Static IP)947.1Mbps / 940.1Mbps
    NAT(DHCP)949.2Mbps / 941.1Mbps
    NAT(PPPoE)942.6Mbps / 941.1Mbps
    NAT (L2TP)875.4Mbps / 892.0Mbps
    NAT (PPTP)881.2Mbps / 895.8Mbps
    IPsec VPN Throughput• ESP-SHA1-AES256: 652.2Mbps
    • ESP-SHA256-AES256: 654.4Mbps
    • ESP-SHA384-AES256: 646.5Mbps
    • ESP-SHA512-AES256: 670.5 Mbps
    OpenVPN115.5Mbps
    L2TP VPN Throughput• Unencrypted: 990.0Mbps
    • Encrypted: 475.0Mbps
    PPTP VPN Throughput• Unencrypted: 1177.9Mbps
    • Encrypted: 177.4Mbps
    SSL VPN Throughput122.5Mbps
    66 66-byte packet forwarding rate1,453,489 pps / 1,453,488 pps
    1,518 Byte Packet forwarding rate81274 pps / 91275 pps
    WIRELESS FEATURES
    Advanced Functions• Seamless Roaming
    • Mesh (with EAP that supports Mesh)
    • OFDMA
    • Beamforming
    • MU-MIMO
    • Rate Limit: Based on SSID/Client
    • Airtime Fairness
    • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
    • Multiple SSIDs: 16 in total (8 per radio)
    Guest NetworkSupport
    BASIC FUNCTIONS
    WAN Connection Type• Static IP
    • Dynamic IP
    • PPPoE (supports MRU Configuration)
    • PPTP
    • L2TP
    MAC CloneModify WAN Address
    DHCP• DHCP Server
    • DHCPv6 PD Server (only in Standalone Mode)
    • DHCP Options Customization
    • DHCP Address Reservation
    • Multi-IP Interfaces
    • Multi-Net DHCP
    SMSReceive / Send SMS
    IPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
    VLAN802.1Q VLAN
    IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
    ADVANCED FUNCTIONS
    ACLIP/Port/Protocol/Domain Name Filtering
    Advanced Routing• Static Routing
    • Policy Routing
    • RIP†
    • OSPF†
    Bandwidth ControlIP-Based Bandwidth Control
    Load Balance• Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup(Timing, Failover)
    • Online Detection
    NAT• One-to-One NAT
    • Multi-Net NAT
    • Virtual Server
    • Port Triggering†
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG
    • UPnP
    Session LimitIP-Based Session Limit
    VPN
    GREOnly in Standalone Mode
    SSL VPN50 Tunnels
    IPsec VPN• 100 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    • IPsec Failover
    • IKE v1/v2
    • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
    PPTP VPN• PPTP VPN Server
    • PPTP VPN Client (10)△
    • 50 Tunnels
    • PPTP with MPPE Encryption
    L2TP VPN• L2TP VPN Server
    • L2TP VPN Client (10)△
    • 50 Tunnels
    • L2TP over IPSec
    OpenVPN• OpenVPN Server
    • OpenVPN Client (5)△
    • 55 OpenVPN Tunnels
    • "Certificate + Account" Mode
    • Full Mode
    WireGuard VPN• 20 Tunnels
    AUTHENTICATION
    Web Authentication• No Authentication
    • Simple Password§
    • Hotspot (Local User / Voucher§ / SMS§ / Radius§)
    • External Radius Server
    • External Portal Sever§
    • LDAP
    MANAGEMENT
    Omada AppYes.
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud AccessYes.
    ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
    Maintenance• Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3
    • Diagnostics (Ping & Traceroute)†
    • NTP Synchronize†
    • Port Mirroring
    • CLI (only in Standalone Mode)
    • Syslog Support
    Zero-Touch ProvisioningYes.Require the use of the Omada Cloud-Based Controller.
    Management Features• Automatic Device Discovery
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • Captive Portal Configuration
    OTHERS
    CertificationCE, FCC, RoHS
    Package Contents• ER706W-4G
    • Power Adapter
    • Quick Installation Guide
    System Requirements• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
    • MAC OS, NetWare, UNIX, or Linux
    Environment• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
    • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    • Operating Humidity: 10% to 90% non-condensing
    • Storage Humidity: 5% to 90% non-condensing
