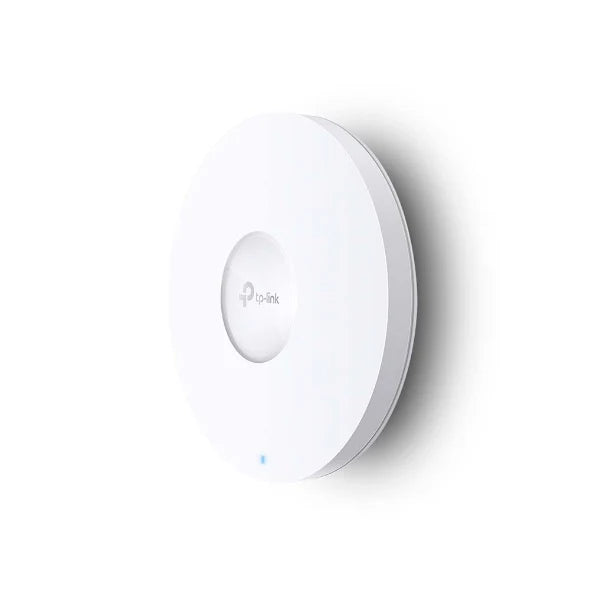

    TP Link EAP610 V2.20 AX1800 Ceiling Mount WiFi 6 Access Point

    Ref: 20506250278
    EAN: 0845973073145
    TechBay
    699.00 QAR
    اضف للعربة »
    • تفاصيل

    Interface1× Gigabit Ethernet (RJ-45) Port
    ButtonReset
    Power Supply• V2, V2.2:
    - 802.3at PoE
    - 48 V Passive PoE
    - 12 V / 1.5 A DC (Power Adapter included)

    • V3:
    - 802.3af/at PoE
    - 12V/1A DC (Power Adapter included)
    Max.Power ConsumptionV2 and V2.2:
    • EU: 13.7 W (For PoE); 12.3 W (for DC)
    • US: 14.2 W (For PoE); 12.8 W (for DC)
    Dimensions ( W x D x H )V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
    AntennaInternal Omni Antenna
    • 2.4 GHz: 2× 4 dBi
    • 5 GHz: 2× 5 dBi
    Mounting• Ceiling /Wall Mounting (Kits included)
    • Junction Box Mounting

    WIRELESS FEATURES

    Concurrent Clients250+**
    Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
    Frequency2.4 GHz and 5 GHz
    Signal Rate• 5 GHz: Up to 1201 Mbps
    • 2.4 GHz: Up to 574 Mbps
    Wireless Functions• 1024-QAM
    • 4× Longer OFDM Symbol
    • OFDMA
    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • MU-MIMO
    • Seamless Roaming §
    • Omada Mesh§
    • Band Steering
    • Load Balance
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
    Wireless Security• Captive Portal Authentication§
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
    Transmission Power• CE:
    <20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

    • FCC:
    <25 dBm (2.4 GHz)
    <25 dBm (5 GHz)

    Management Features

    Omada AppYes
    Centralized Management• Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
    • Omada Hardware Controller OC300
    • Omada Hardware Controller OC200
    • Omada Software Controller
    Cloud AccessYes, through
    • OC300
    • OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
    Email AlertsYes
    LED ON/OFF ControlYes
    Management MAC Access ControlYes
    SNMPv1, v2c, v3
    System Logging Local/Remote SyslogLocal/Remote Syslog
    SSHYes
    Web-based ManagementHTTP/HTTPS
    L3 ManagementYes
    Multi-site ManagementYes
    Management VLANYes
    Zero-Touch ProvisioningYes.Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)

    OTHERS

    CertificationCE, FCC, RoHS
    Package Content• EAP610
    • Power Adapter
    • Ceiling/ Wall Mounting Kits
    • Installation Guide
    System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
    Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
