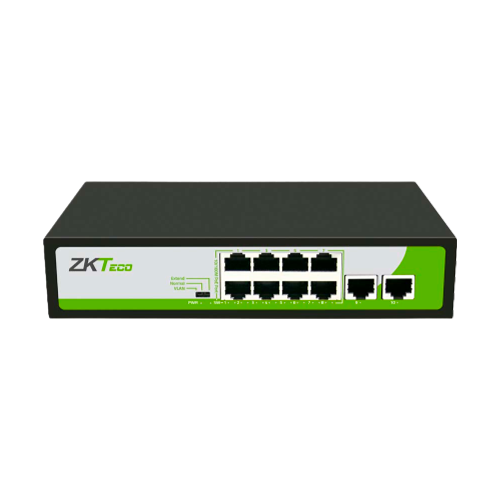

Zkteco PE082-120-C/BS

Model

PE08-120

Ethernet Port

8 PoE Ports (10 / 100 Mbps)
2 Uplink Ports (10 / 100 Mbps)
All ports support MDI / MDIX self-adaptation

POE Standard

IEEE 802.3af, IEEE802.3at

PoE Consumption

Max 30W per Port, total PoE budget 120W

Network Protocol

IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control

Switching Bandwidth

2Gbps

Packet Fowarding Rate

1.488Mpps

Buffer Memory

768KB

Mac Table Size

2KB

MTBF

100,000 hours

Power Input

AC220V, 50 / 60Hz

Lightning Protection

2KV

Dimensions (L*W*H)

195 * 130 * 40mm

Working Humidity

10% ~ 90%, non-condensing

Net Weight

1.3kg
