LS105LP New 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Ref: 20506250290
EAN: 0020506250290
    189.00 QAR
    Add to Cart »
    • Details

    Interface• 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
    • AUTO Negotiation
    • AUTO MDI/MDIX
    Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
    Fan QuantityFanless
    Installation• Desktop
    • Wall Mounting
    Power SupplyExternal Power Adapter (Output: 53.5VDC / 0.81A)
    LED• Power
    • Link/Act
    • PoE Status
    • PoE MAX
    PoE Ports (RJ45)• Standard: 802.3 af compliant
    • PoE Ports: Ports 1–4, up to 15.4 W PoE output per port
    • Power Supply: 41 W
    Dimensions ( W x D x H )3.9×3.9×1.0 in (100×98×25 mm)
    Max.Power Consumption• 2.40 W (220 V/50 Hz no PD connected)
    • 46.45 W (220 V/50 Hz with 41 W PD connected)
    Max.Heat Dissipation• 8.15 BTU/h (220 V/50 Hz no PD connected)
    • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected)
    PERFORMANCE
    Switching Capacity1 Gbps
    Packet Forwarding Rate0.744 Mpps
    MAC Address Table2K
    Jumbo Frame2 KB
    SOFTWARE FEATURES

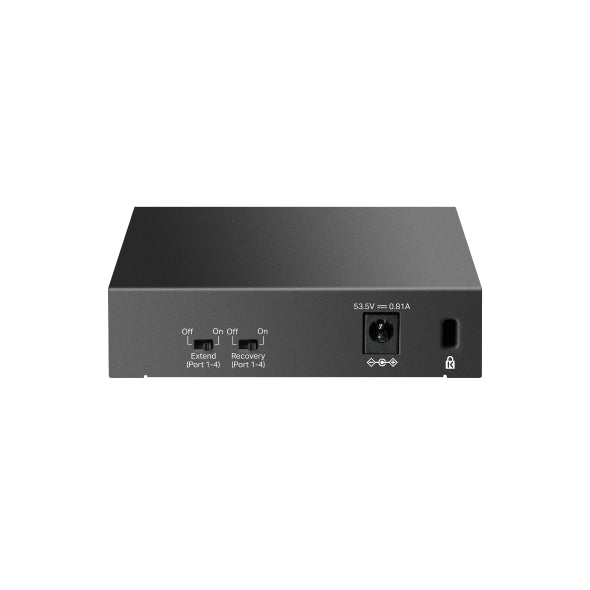

    Advanced Features• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
    • PoE Auto Recovery Button (Ports 1-4)
    • Compatible With IEEE 802.3af Compliant PDs
    • Mac Address Auto-Learning and Auto-Aging
    • IEEE 802.3x Flow Control
    • Green Technology
    Transmission MethodStore and Forward
    OTHERS
    CertificationCE, FCC, RoHS
    Package Content• LS105LP
    • Power Adapter
    • Installation Guide
    Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
